CCTV Camera Mounting Brackets
Camera Stand Bracket
Full aluminium stand with a ball-joint head. Stands on its base, fixes to a wall or hangs from a ceiling — in two heights, 170 mm and 220 mm.
- Material
- Aluminium alloy
- Dimensions
- 170 mm (04D) / 220 mm (05D) high, Ø90 mm base
- MOQ
- 500 pcs
- Incoterms
- FOB Shenzhen / EXW
Logo label on this item?
A printed or dome label with your brand may be possible on this model. It depends on the supplier and on quantity — ask us to confirm before you order.
Overview

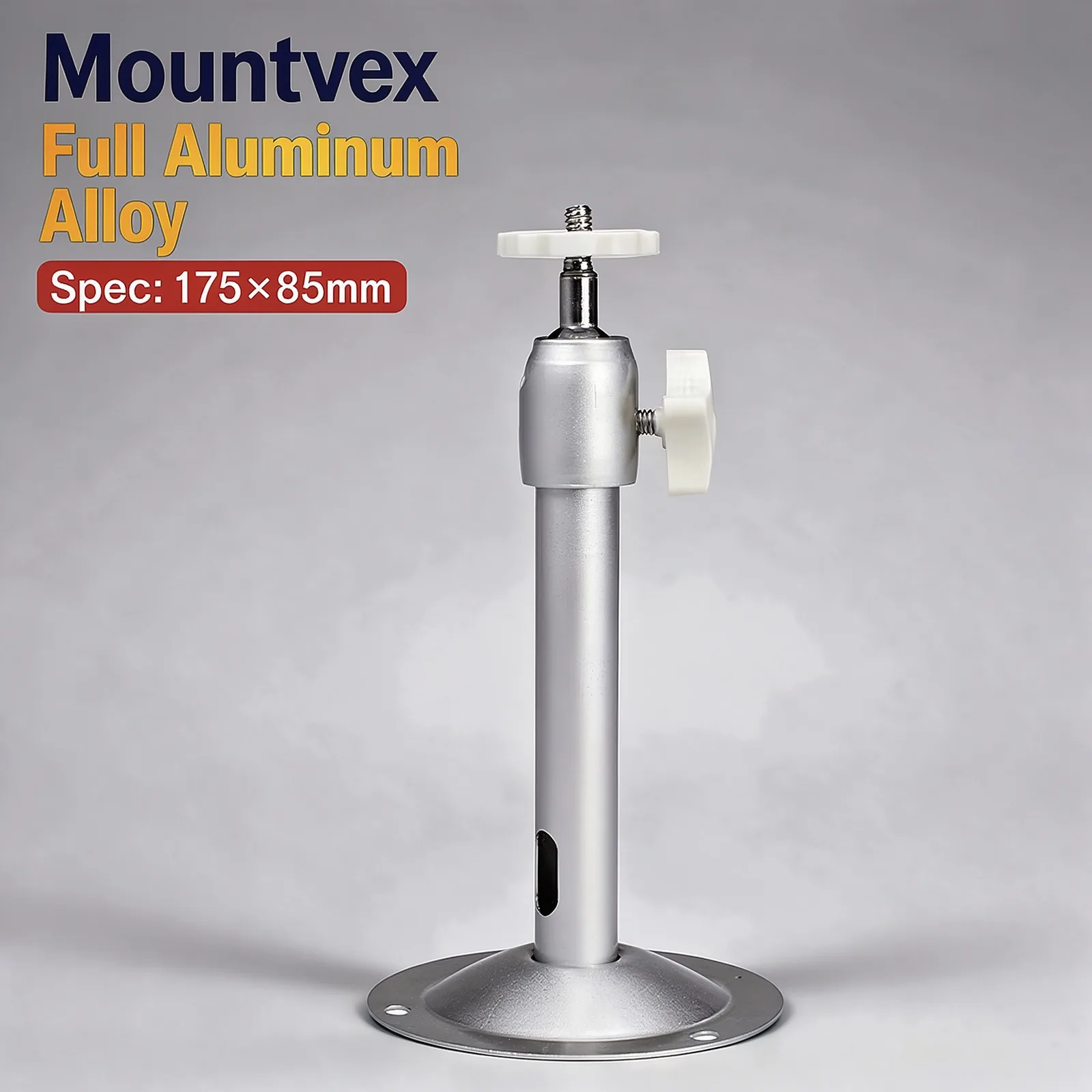

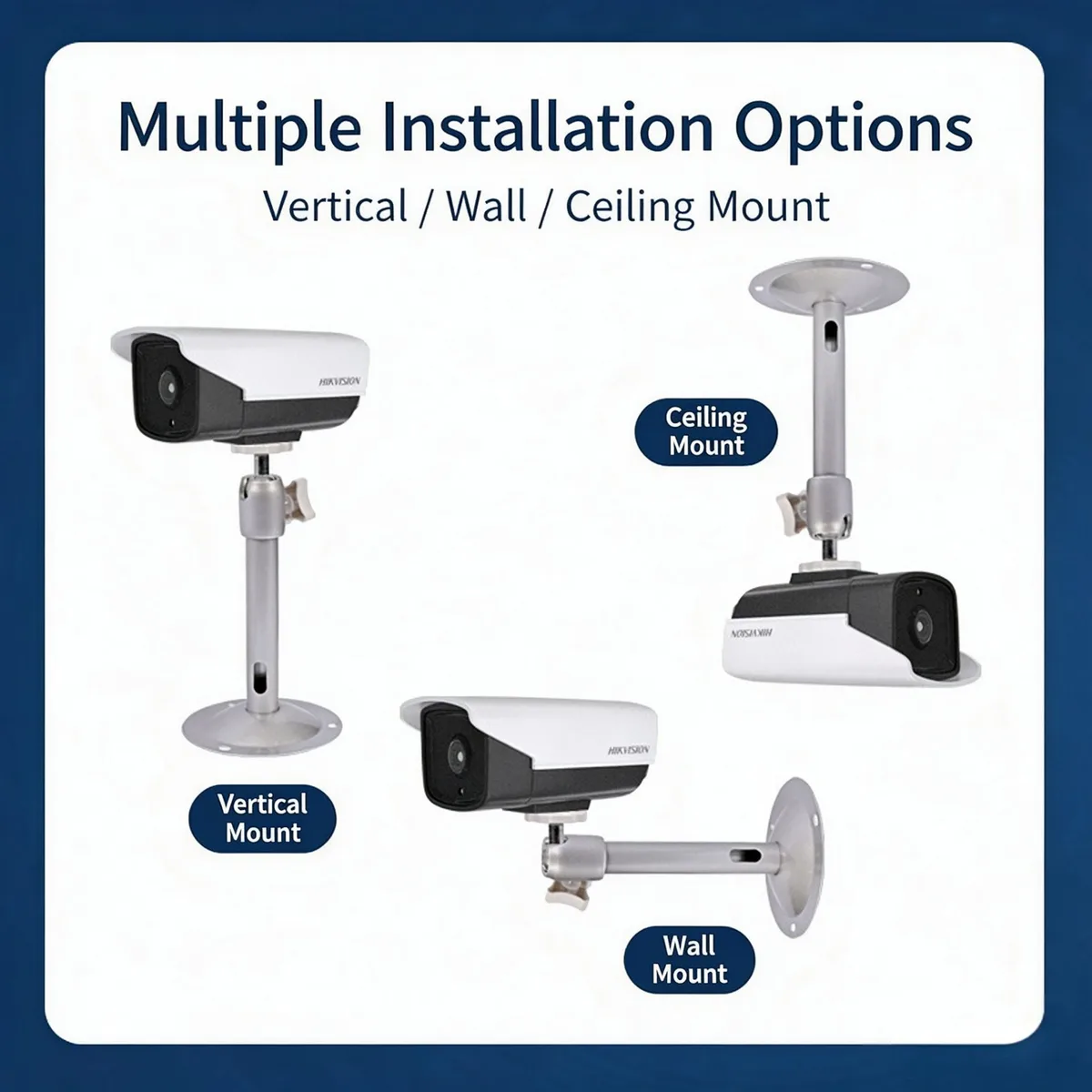

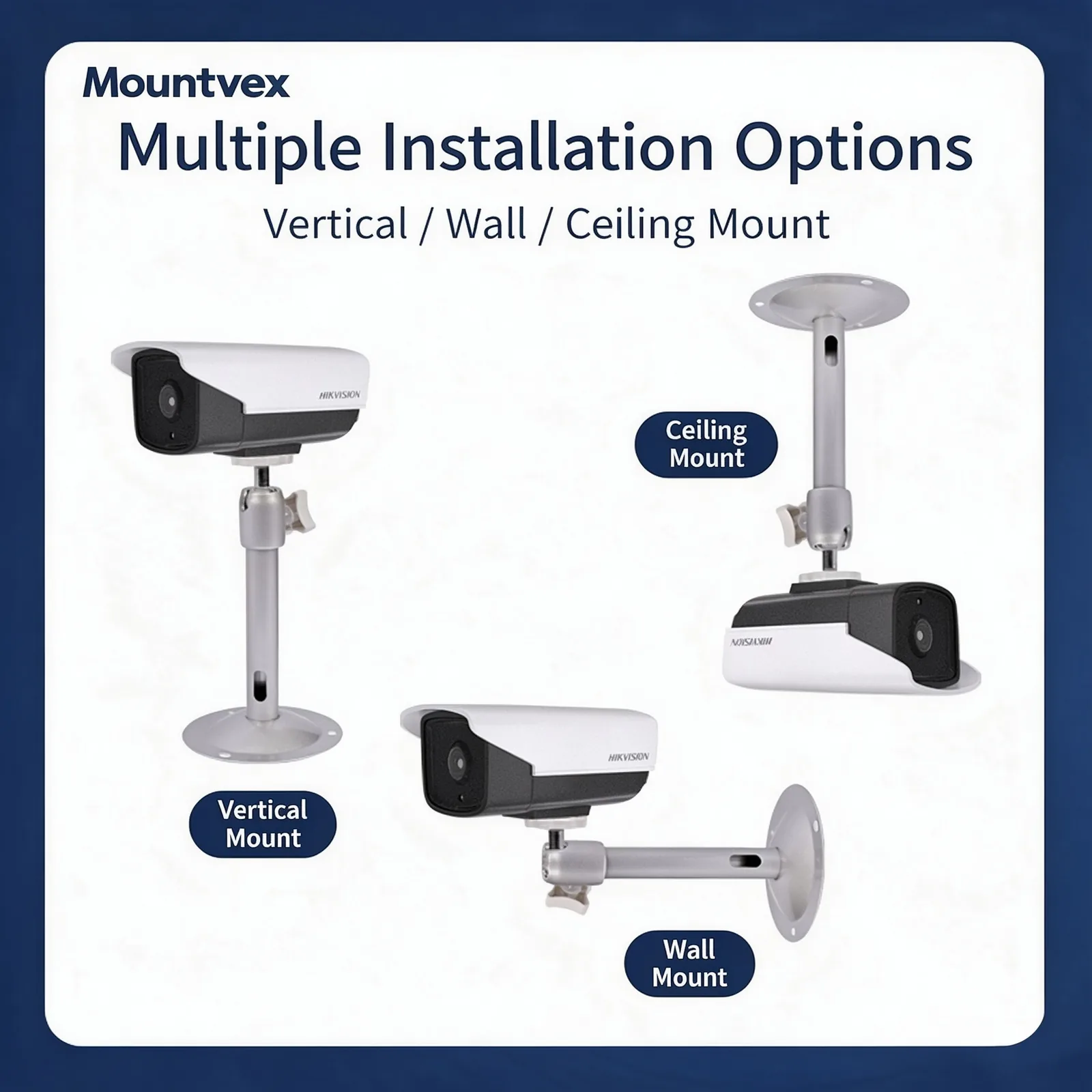

The stand is one piece of aluminium: a Ø90 mm base, an Ø18 mm tube and a ball-joint head. Set it on a horizontal surface and it stands upright, fix the flange to a wall and it reaches out, or mount it under a ceiling and it hangs down. Same body, three installations.

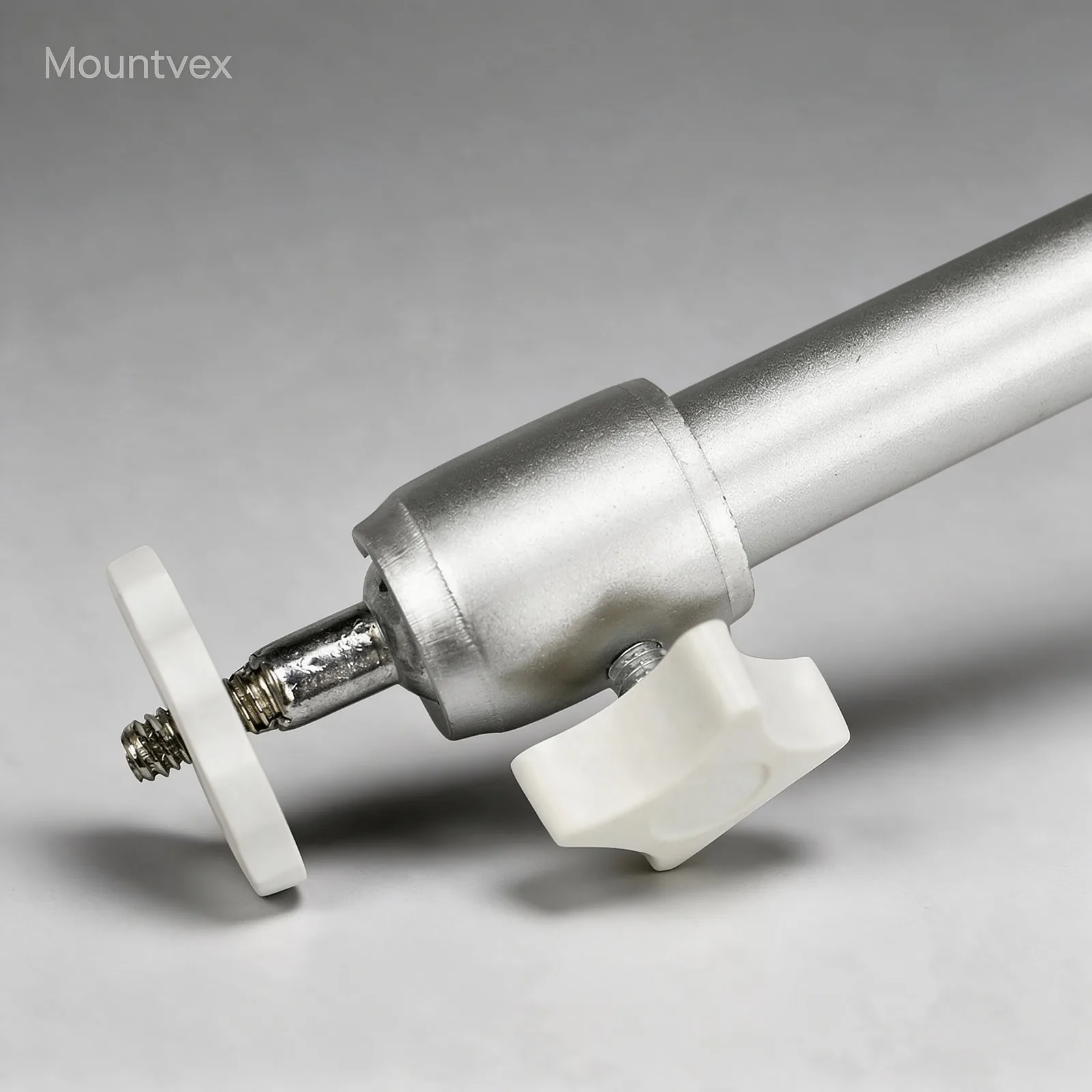

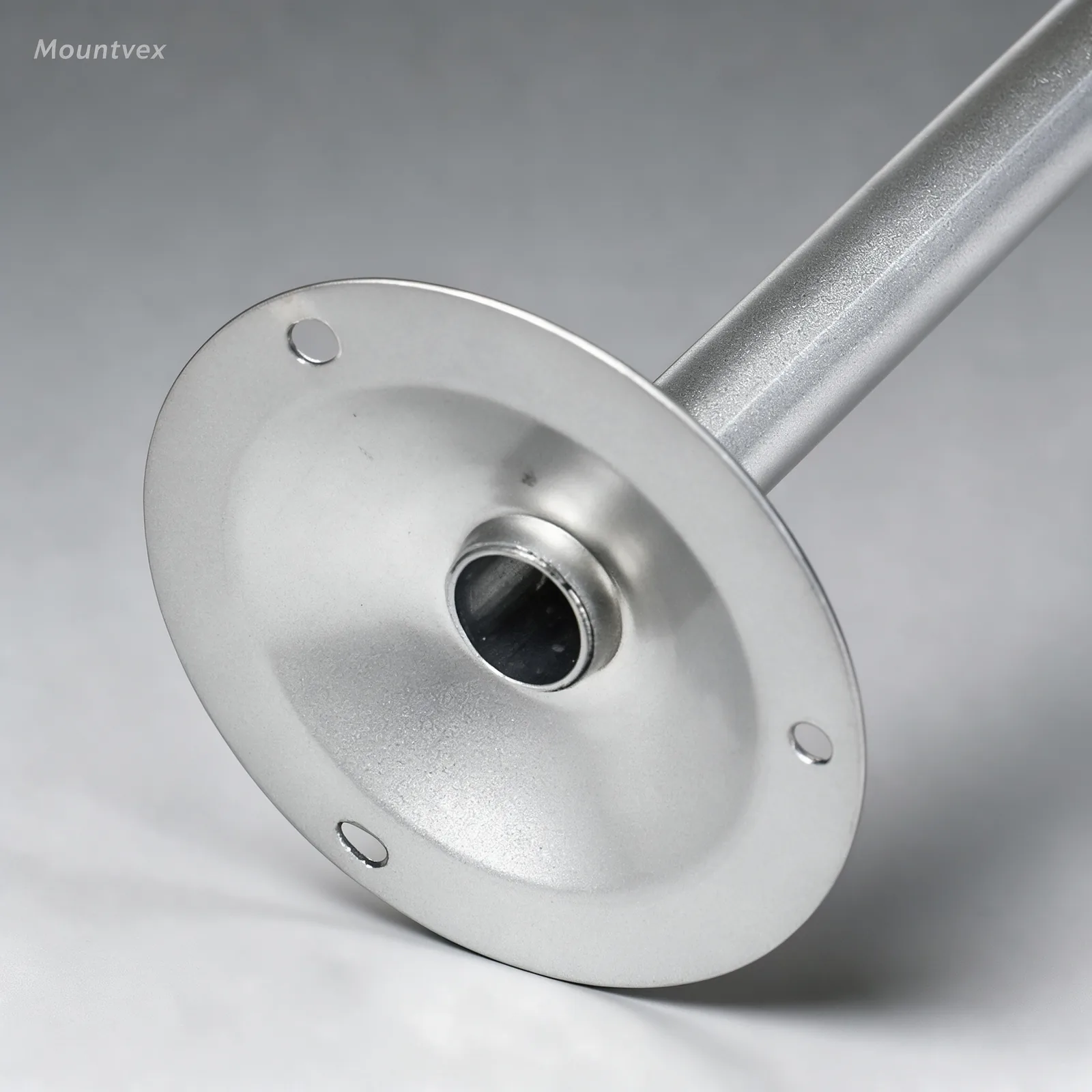

The cable enters through the centre of the base and leaves through a slot in the tube, so the run stays out of sight. The head turns on a ball joint and locks with a hand knob — the camera can be aimed and tightened without tools.

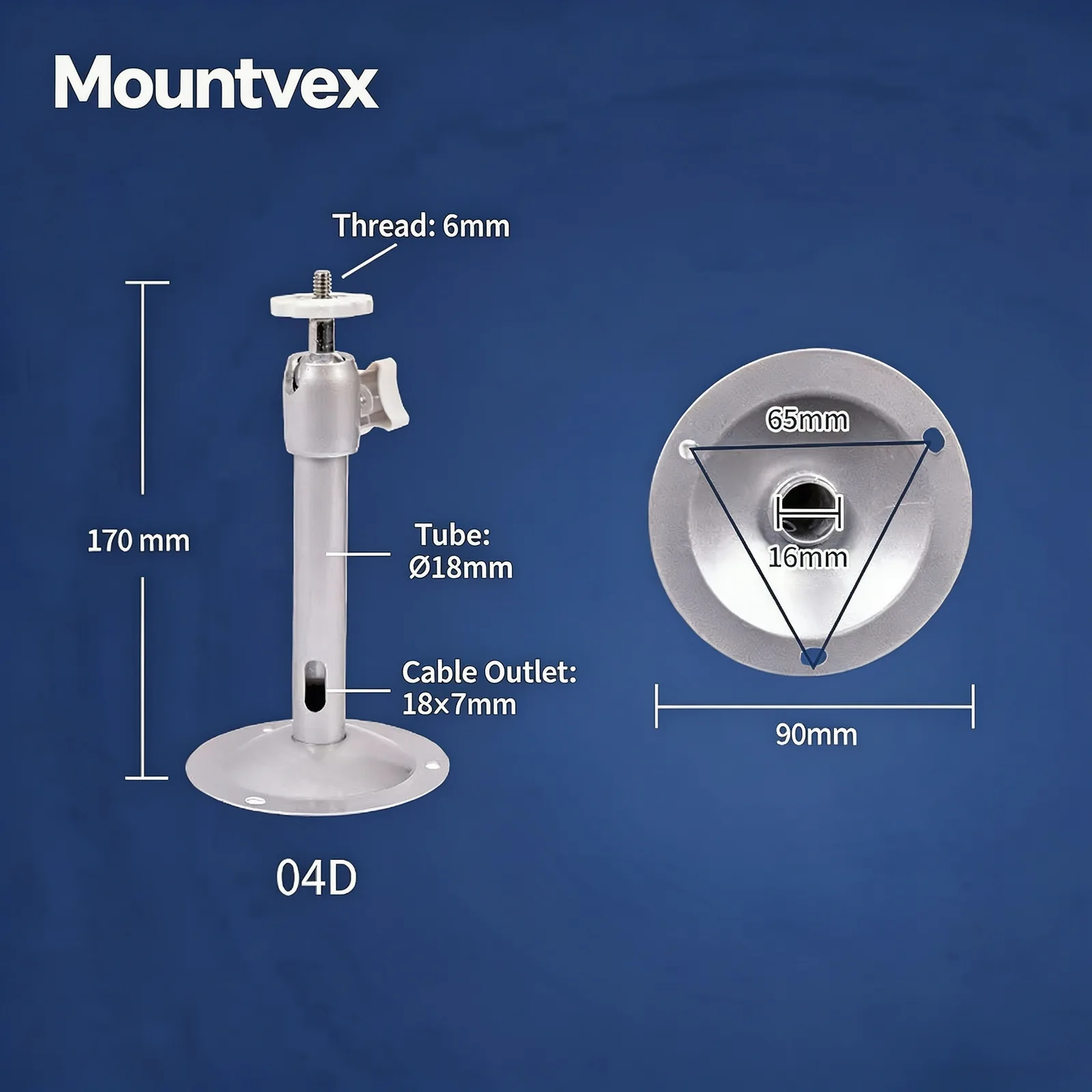

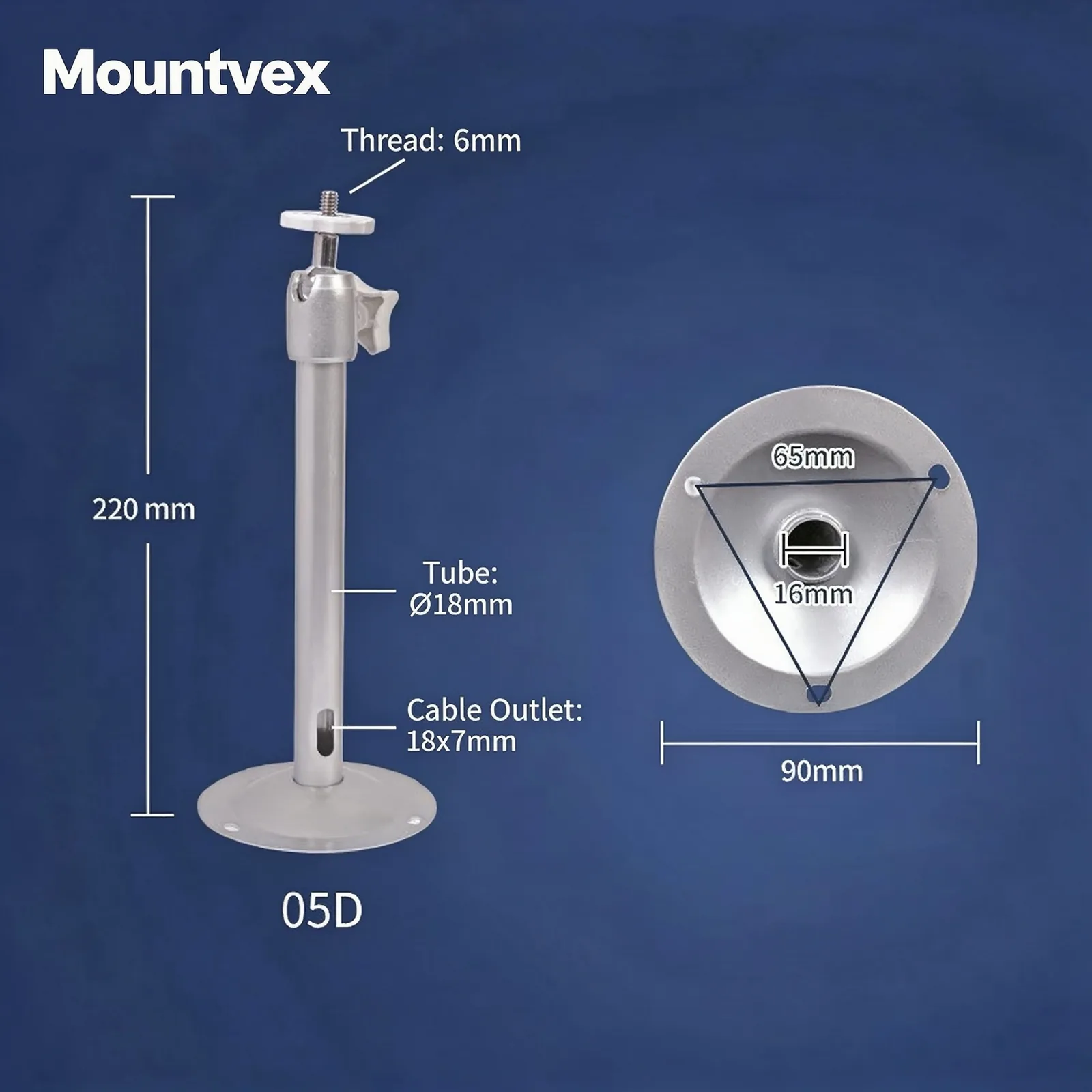

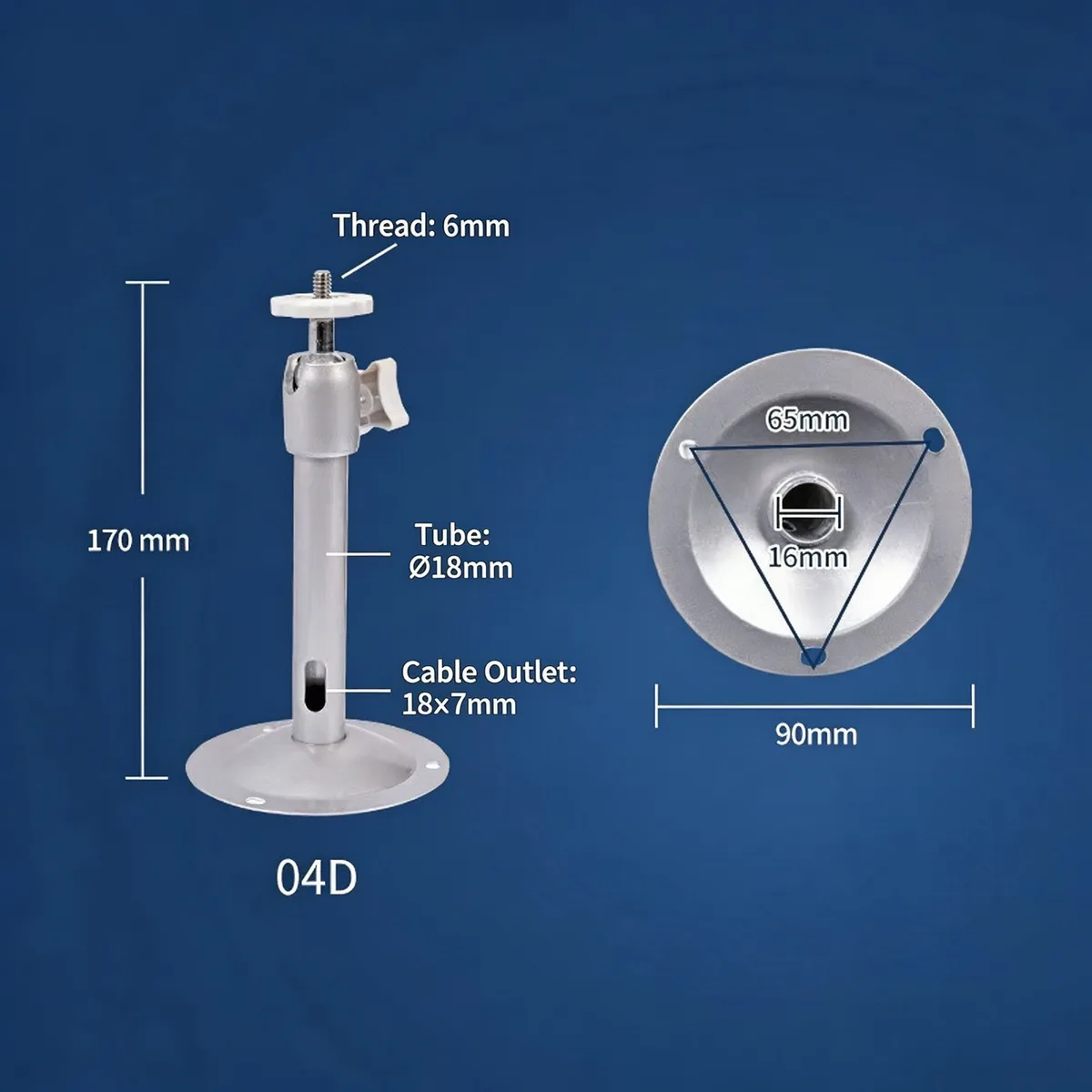

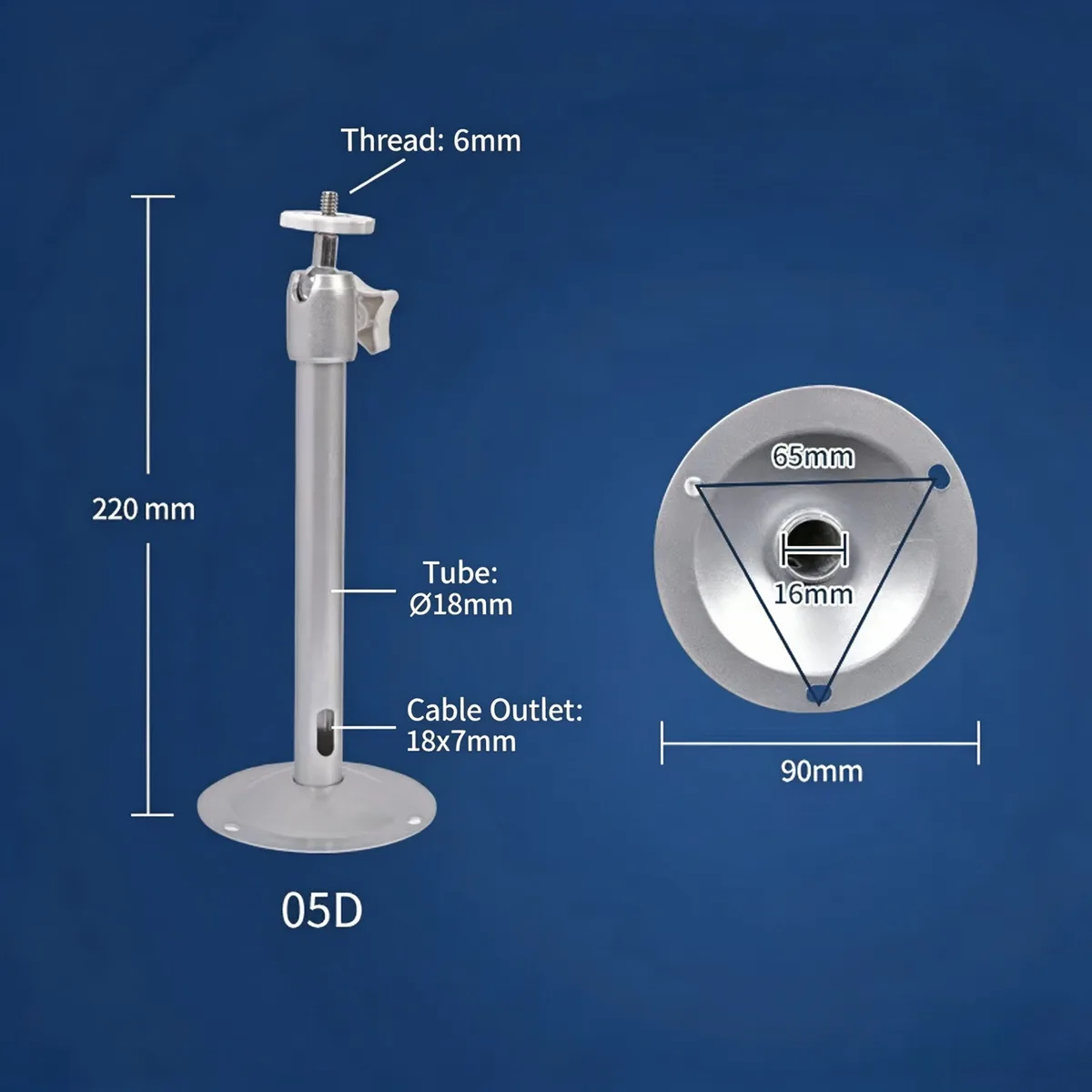

Two heights are produced: 04D at 170 mm and 05D at 220 mm. Both share the same base with a 65 mm three-hole fixing pattern, so one drilling template covers the range.
Key features
- Ball-joint head locks with a hand knob — no tools to aim
- Cable runs inside the tube and out through a side slot
- One body for vertical, wall and ceiling mounting
- Two heights from one base: 170 mm and 220 mm
- Full aluminium alloy
Specifications
| Category | CCTV Camera Mounting Brackets |
|---|---|
| Material | Aluminium alloy |
| MOQ | 500 pcs |
| Incoterms | FOB Shenzhen / EXW |
| Models | 04D (170 mm) / 05D (220 mm) |
| Tube | Ø 18 mm |
| Base | Ø 90 mm |
| Fixing holes | 65 mm triangle pattern |
| Cable entry | Ø 16 mm centre, 18 × 7 mm side outlet |
| Camera thread | 6 mm |
| Head | Ball joint with locking knob |
| Mounting | Vertical / wall / ceiling |
| Packing | To be confirmed |
Figures above are the ones confirmed with the supplier. Anything not listed is still open — ask sales and we will confirm it in writing.
